 Tactile Switches >> WQP-TD-08


Product Name:
  WQP-TD-08
Item no.:
  WQP-TD-08

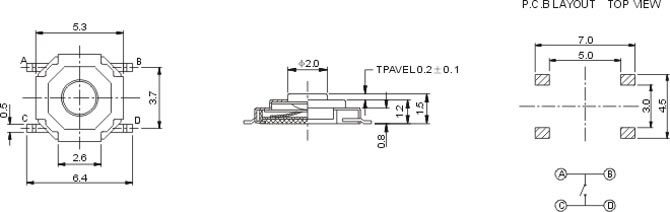

Demension:

Product Class:
  Tactile Switches

Product Description

Temperature -25~85℃
Rated Load  DC 12V 0.5A
Contact resistance  ≤0.03Ω

Insulation resistance

 ≥100MΩ
Withstand voltage  AC 250V(50Hz)/Min
Actuating Force  1.3±0.5N
Life  100,000 Times
Remark

 1. The Length(L)can be set at the full discretion of the consumer.  2. The head can be shaped either round(like 〇 or square(like □).
