PTB Push Terminal Board >> WQP-PTB-301H

Product Name:	WQP-PTB-301H
Item no.:	PTB-301H

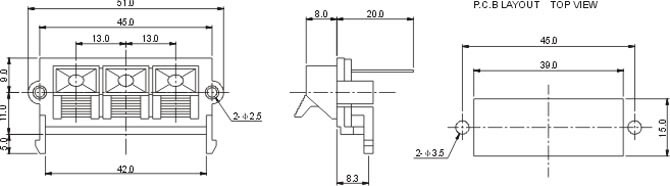

Demension:
Product Class:	PTB Push Terminal Board

Product Description

Temperature -40~55℃

Rated Load DC 50V 3A

Contact resistance

Insulation resistance

≤0.03Ω

≥100MΩ

Applicable wire: AWG #16-24

Withstand voltage AC 500V(50Hz)/Min

Insertion and Extraction Force 5-30N

Life 5000 Times
