 2.5/3.5 Phone Jacks(DIP) >> 2.5 DIP Jack >> WQP-PJ2010


Product Name:
  WQP-PJ2010
Item no.:
  WQP-PJ2010

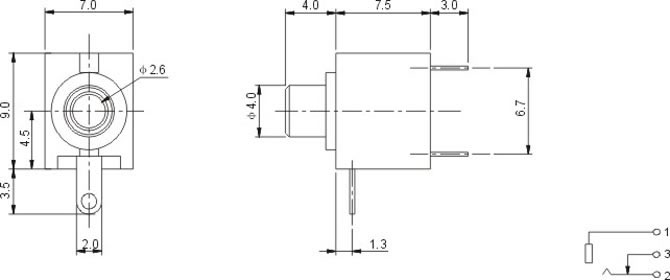

Demension:

Product Class:
  2.5/3.5 Phone Jacks(DIP)

Product Description

Temperature  -30~70℃
 Rated Load  DC 30V 0.5A
 Contact resistance  ≤0.03Ω
 Insulation resistance  ≥100MΩ
 Withstand voltage  AC 500V(50Hz) 1min
 Insertion and Extraction Force  3-20N
 Life  5000 Times

  UpdateTime:2010/5/28 【Print】 【Close
