2.5/3.5 Phone Jacks(SMT) >> 3.5 SMT Jack >> WQP-PJ313E

Product Name:	WQP-PJ313E
Item no.:	WQP-PJ313E

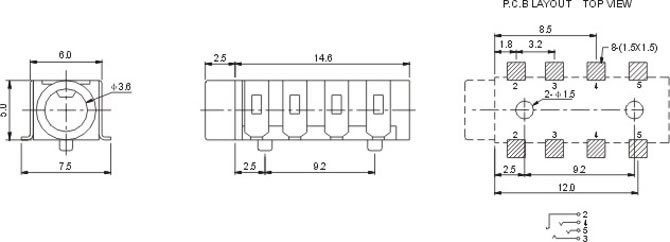

Demension:
Product Class:	2.5/3.5 Phone Jacks(SMT)

Product Description

Temperature -30~70℃

Rated Load DC 30V 0.5A

Contact resistance ≤0.03Ω

Insulation resistance ≥100MΩ

Withstand voltage AC 500V(50Hz) 1min

Insertion and Extraction Force 3-20N

Life 5000 Times

UpdateTime：2010-05-15 【Print】【Close】
