Uni-Direction Push-Button Switches >> WQP-PBS-8-2

Product Name:	WQP-PBS-8-2
Item no.:	PBS-8-2

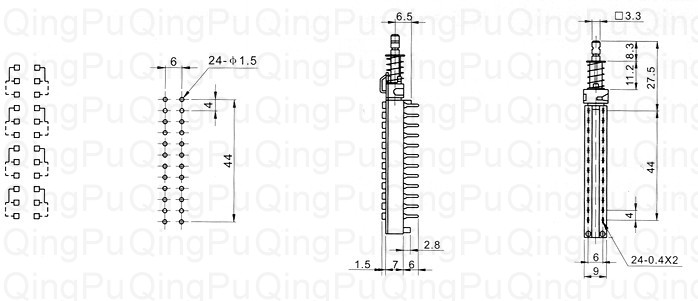

Demension:
Product Class:	Uni-Direction Push-Button Switches

Product Description

Temperature	-40~70℃
Rated Load	DC 60V 0.3A
Contact resistance	≤0.02Ω
Insulation resistance	≥500MΩ
Withstand voltage	AC 250V(50Hz)/Min
Insertion and Extraction Force	100-350gf
Life	100,000 Times

UpdateTime：2013-03-26 【Print】【Close】
